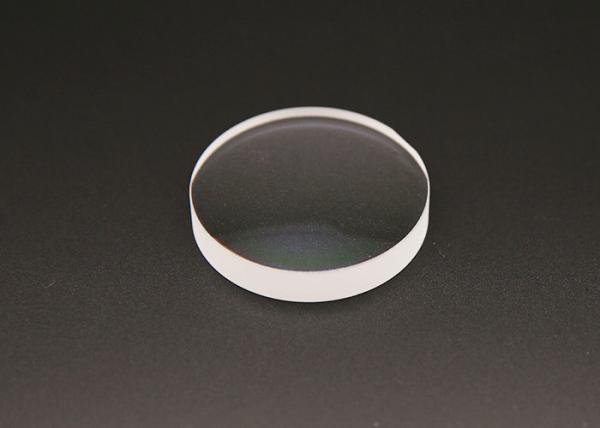

PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination

Name: PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination
Brand: Wuhan Siwer Optics
Price: 2 USD

Best PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination wholesale

Brand Name : Wuhan Siwer Optics

Place of Origin : Wuhan,China

MOQ : 10 pieces

Price : 2-60USD/piece

Payment Terms : T/T, Western Union

Supply Ability : 5000 pieces/month

Delivery Time : 4-6 weeks

Packaging Details : 1.Tissue paper. 2.Plastic foam packaging film. 3.Hard carton box with quakeproof filler

Material : Optical glass,BK7,SF,etc.

Size tolerance : +/-0.1mm

Chamfer : 0.2-0.5mm

Surface quality : 40/20

Surface flatness : Lambda/4 in 25.4mm

Centration : 3 arc min

Standard coating : AR@400-700nm or customized

Size range : 4-300mm

Usage : Optical system

Contact Now

Plano convex lens

Plano-Convex Lenses are Optical Lenses with a positive focal length. Plano-Convex Lenses are ideal for light collimation or for focusing applications utilizing monochromatic illumination, in a range of industries including industrial, pharmaceutical, robotics, or defense. PCX Lenses have one convex surface. For maximum efficiency, the second, plano (flat) surface should face the desired focal plane. Plano-Convex lenses are commonly used in a wide range of applications or industries.

PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination

Optical AR Coatings

a) Uncoated,The surface reflectivity of uncoated visible lenses(Refractive index＝1.5) is about 4%.

Click on the link to see how to calculate reflectivity

b) AR/AR@400-700nm,Tavg>99.4%

c) AR/AR@450-650nm,Tavg>99.6%

d) AR/AR@400-1000nm,Tavg>98.5%

e) We can also customize high damage threshold antireflective coatings

PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination

Production Line

PCX Plano Convex Lens For Focusing Applications Utilizing Monochromatic Illumination

Optical Properties of Optical Lens

Material	Optical glass
AR Coating Range	400-700nm or customized
Reflectance over AR Coating Range @ 0° AOI	Ravg<0.5%
Diameter Tolerance	+0.0/-0.1 mm
Thickness Tolerance	±0.1 mm
Focal Length Tolerance	±2%
Surface Quality	40/20 Scratch-Dig
Surface Flatness (Plano Side)	λ/2 at 633nm
Spherical Surface Powerc (Convex Side)	1.5λ at 633nm
Surface Irregularity (Peak to Valley)	λ/2 at 633nm
Centration	<3 arcmin
Clear Aperture	>Ø10.16 mm (Ø1/2" Lenses) >Ø20.32 mm (Ø1" Lenses)
Design Wavelength	546nm
